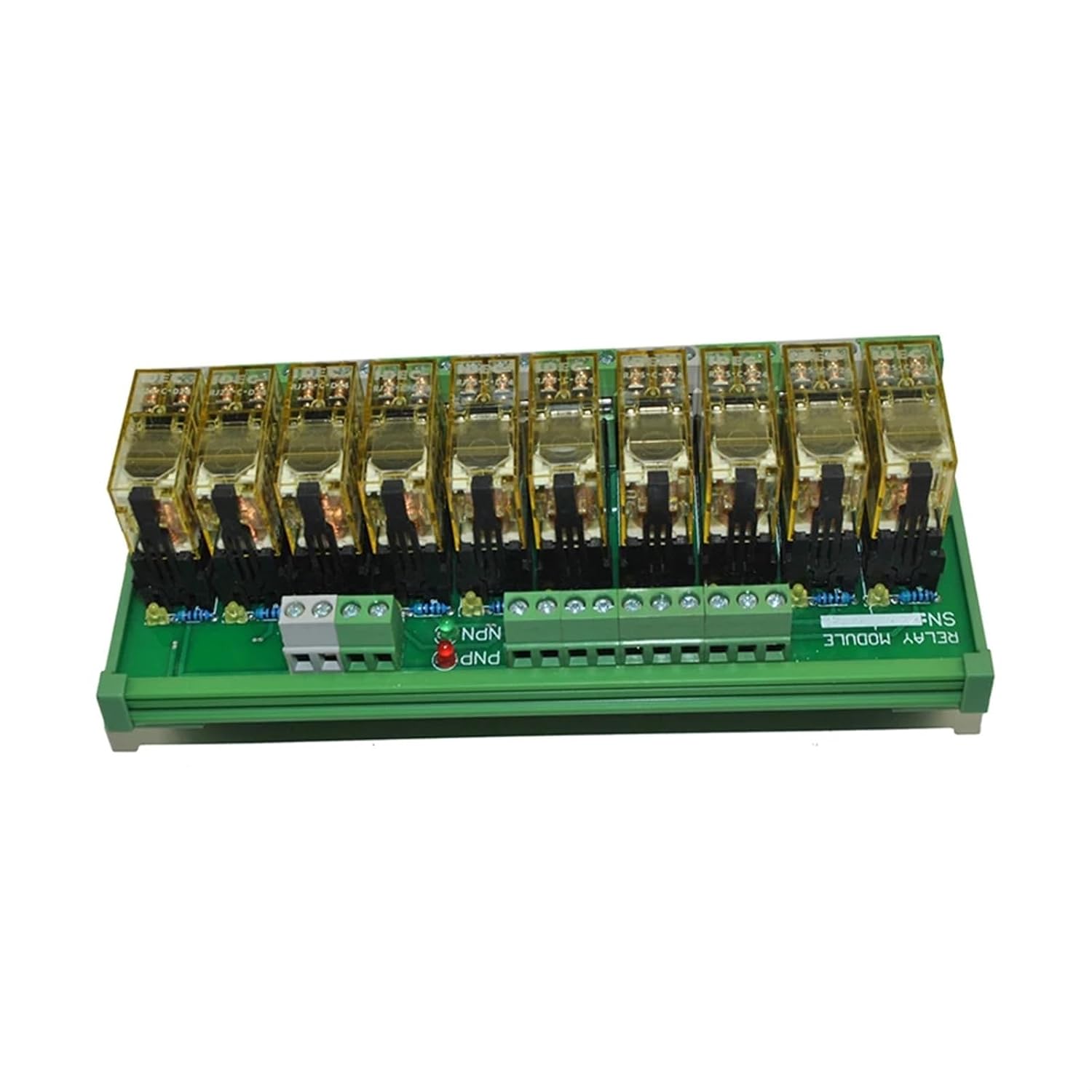

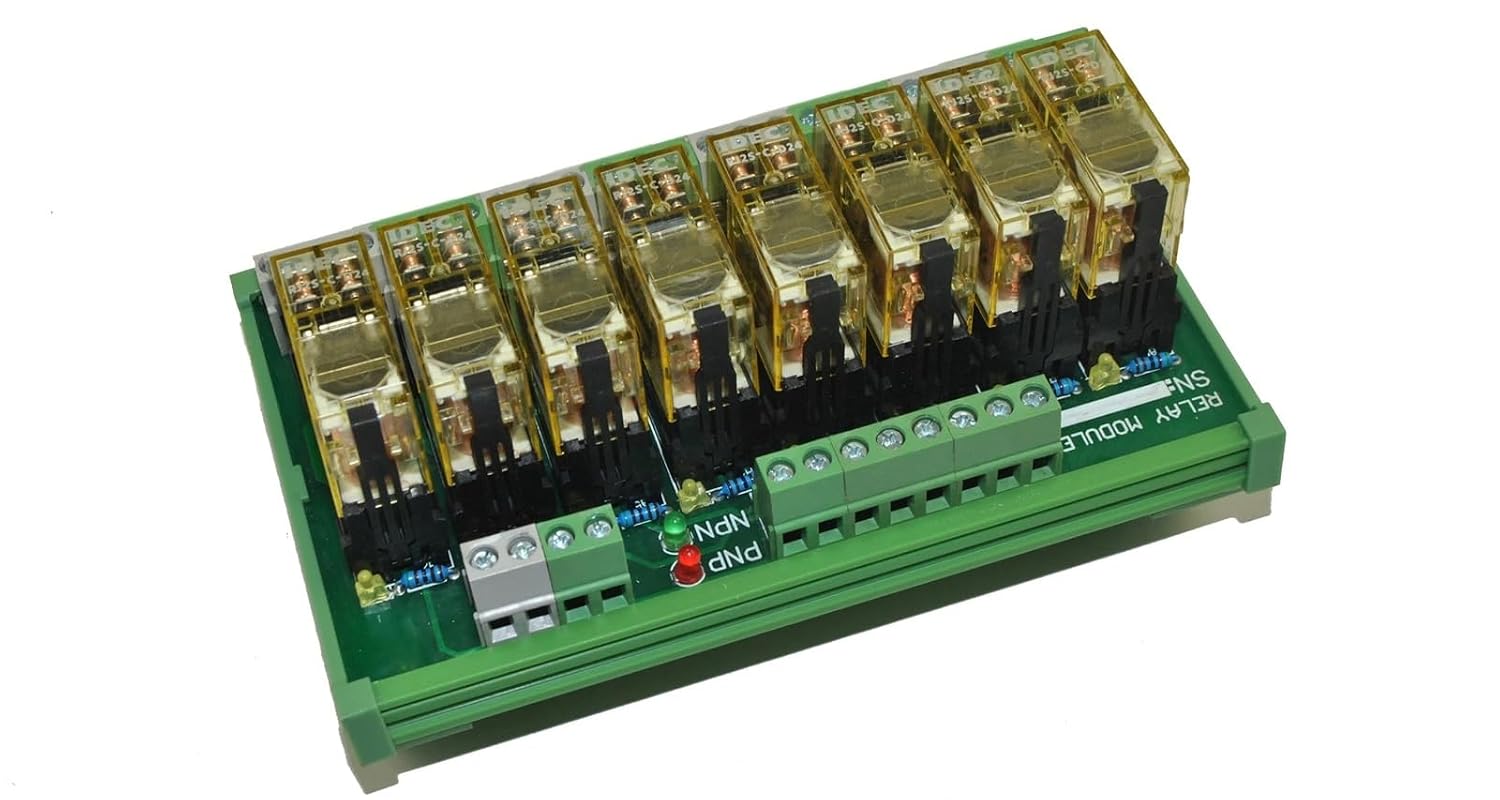

1 PCS 8 Channel and 1 PCS 10 Channel DPDT RJ2S 220VAC Relay Module

Terminal BlocksFeatures:1.DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;2.Buit-in slim power relay RJ1S-C certified with UL,CSA,VDE, and compliant3.Switching current upto 8A at 250VAC or 30VDC;4.Input connections by screw terminal block.NPN&PNP can be interchangeableACDC can be in compatible;5.Relay status indicator LED,surge suppression protection and overvoltage protection are providedfor each relay channel;6.DIN Rail mountable for width TS15/28/35Ordering Code:Relay Module Dimension:Relay QtyDimension(mm)N.W.(g)2 40*85*70120g4 70*85*70205g6 100*85*70295g8 130*85*70375g10160*85*70470g12190*85*70560g14220*85*70650g16250*85*70735gApplication:Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to ,microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key controlsystems not being destroyed.DATE:Input Operation VoltageRated ±20% &AC10Relay MountingPluggableRated Load Current8A 250VAC30VDCMax Inrush Current8ACoil PowerApprox 053 WOperate Time(at normal volt.)15msRelease Time(at normal volt.)10msInput/Output ConnectionsScrew terminal blockWire Range0.2~2.5mm2Stripping Length6-7mmDIN Rail Mountable15/28/35mmPower Per ChannelWiring Diagram:==========Power : ACTheory : Voltage relayis_customized : YesProtect Feature : SealedContact Load : Low PowerUsage : General PurposeVoltage : 220VCertification :
